13 Callable Shaders - Tutorial¶

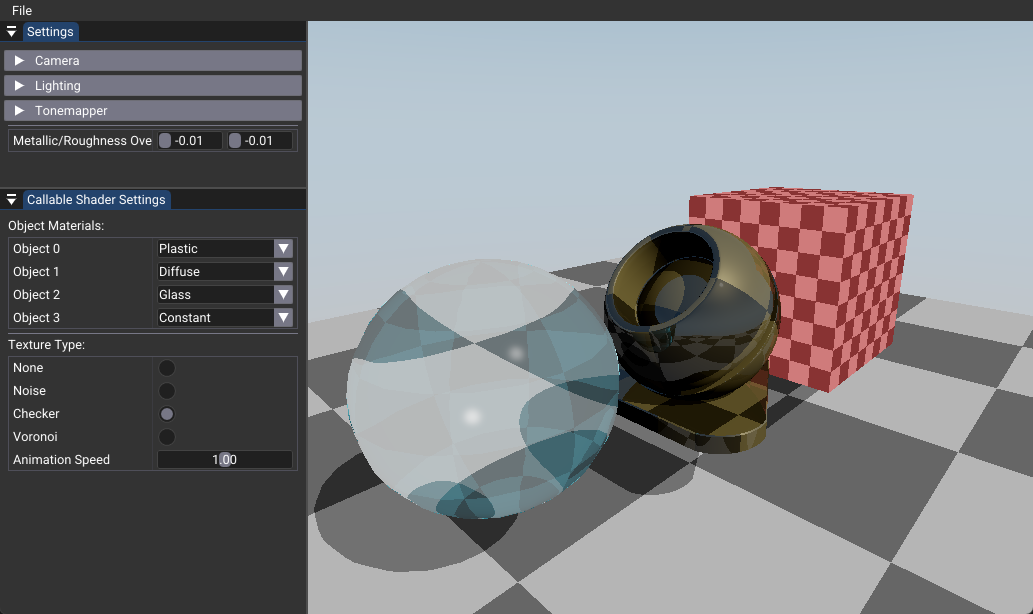

13 Callable shaders material system result

This tutorial demonstrates how to use callable shaders to create a modular material system with procedural textures. Callable shaders enable you to break complex shading logic into reusable, specialized functions that can be invoked dynamically during ray tracing, eliminating expensive branching in closest hit shaders.

Key Changes from 02_basic.cpp¶

1. Shader Changes¶

Modified: 13_callable_shader.slang

Added callable shader functions for different material types (diffuse, plastic, glass, constant)
Added procedural texture callable shaders (noise, checker, voronoi)
Modified closest hit shader to use CallShader instead of branching logic

[shader("callable")]
void material_diffuse_main(inout CallablePayload payload)
{
  // Simple Lambertian lighting - no reflection
  payload.weight = 0.0;
  float dotNL = max(dot(payload.worldNormal, payload.lightDir), 0.0);
  payload.color *= dotNL * payload.lightColor;
}

// In closest hit shader:
int materialType = InstanceID();  // Direct material lookup
CallShader<CallablePayload>(materialType, callablePayload);

2. C++ Application Changes¶

Modified: 13_callable_shader.cpp

Extended StageIndices enum to include callable shader stages
Added callable shader groups to pipeline creation
Modified TLAS creation to use material types in instanceCustomIndex
Added material assignment UI controls

enum StageIndices
{
  eRaygen, eMiss, eClosestHit,
  // Material callable shaders
  eMaterialDiffuse, eMaterialPlastic, eMaterialGlass, eMaterialConstant,
  // Texture callable shaders
  eTextureNoise, eTextureChecker, eTextureVoronoi,
  eShaderGroupCount
};

// TLAS creation uses material type instead of mesh index
ray_inst.instanceCustomIndex = m_objectMaterials[i];

3. Data Structure Changes¶

Modified: Push constants and payload structures¶

Added TextureType enum for procedural texture selection
Created separate payload structures for material and texture callable shaders
Added material assignment arrays for per-object material types

struct CallablePayload
{
  float3 color, worldPos, worldNormal, viewDir, lightDir, lightColor;
  RayDesc ray;
  float weight;
};

struct TextureCallablePayload
{
  float3 color;
  float2 uv;
};

4. UI Changes¶

Modified: onUIRender()

Added material type selection for each object (requires TLAS recreation)
Added texture type selection (push constant, no TLAS recreation needed)
Added animation speed control for procedural textures

How It Works¶

Callable shaders work by extending the ray tracing pipeline with additional shader stages that can be invoked dynamically. Instead of using complex branching logic in the closest hit shader to handle different materials, each material is implemented as a separate callable shader function.

The key insight is using the instanceCustomIndex field in the TLAS to store material types directly. When a ray hits an object, InstanceID() returns this material type, allowing direct dispatch to the appropriate callable shader without any conditional logic.

Benefits¶

Performance Advantages¶

Eliminates branching: Material selection happens at the TLAS level, not in shader code
Better GPU utilization: Each material gets its own specialized shader
Reduced compilation time: No complex branching logic to compile

Code Organization¶

Modularity: Each material is a separate, reusable function
Maintainability: Easy to add new materials without modifying existing code
Debugging: Individual materials can be tested and debugged in isolation

Flexibility¶

Runtime material selection: Materials can be changed without recompiling shaders
Different payload types: Material and texture callable shaders can use different data structures
Extensibility: Easy to add new material types or procedural textures

Technical Details¶

Material Types¶

The tutorial implements four different material types as callable shaders:

Diffuse: Simple Lambertian lighting with no reflection
Plastic: Metallic material with reflections using PBR model
Glass: Transparent material with refraction and Fresnel effects
Constant: Emissive material that emits light

Procedural Textures¶

Three procedural texture types are implemented:

Noise: Animated polka dot pattern with wave distortion
Checker: Static checkerboard pattern
Voronoi: Animated cell pattern with time-based generation

Performance Considerations¶

Material Changes: Require TLAS recreation because instanceCustomIndex is part of the acceleration structure. This is expensive but necessary for proper material assignment.

Texture Changes: Use push constants and don't require TLAS recreation, making them much faster to modify at runtime.

Limitations¶

Callable shaders cannot call other callable shaders or trace rays
Additional SBT complexity and memory overhead
More complex pipeline setup compared to basic ray tracing

Usage Instructions¶

Interactive Controls¶

Material Type: Select material for each object (requires TLAS rebuild)
Texture Type: Choose procedural texture (instant, no rebuild needed)
Animation Speed: Control texture animation speed

Expected Behavior¶

Different objects should display different materials based on selection
Procedural textures should animate smoothly when enabled
Material changes should trigger a brief pause while TLAS rebuilds
Texture changes should be immediate with no performance impact
